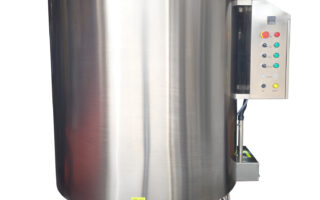

Loynds chocolate holding tanks are made from full stainless steel and are available in a range of sizes from 100kg up to 5000kg capacities.
Built in China & UK
×
Built in China
Interested?
Call: +44 (0) 1253 882 961
E-Mail: sales@loynds.co.uk
for more information.
Loynds offers a comprehensive range of chocolate holding tanks. All tanks are manufactured from food grade stainless steel, ensuring durability and hygiene. They are available in various capacities to meet the diverse needs of businesses, ranging from small-scale producers to larger manufacturers.
Capacities and Customization
The Loynds chocolate tank series provides an extensive range of sizes, catering to different production volumes:
Standard Capacities:
- CT02 – 100kg
- CT03 – 300kg
- CT04 – 500kg
- CT05 -1000kg
- CT06 – 2000kg
- CT073000kg
- CT08 – 5000kg
- Custom sizes by request
Construction and Heating
- Material: Constructed entirely from stainless steel, offering longevity and ease of cleaning.
- Heating System: Equipped with a self-contained water-jacketed heating system, ensuring even and efficient temperature distribution. Larger tanks are supplied with as self contained pump to move the heated water around the jacket.
Temperature Control
- Thermostat: Features a fully controllable thermostat, crucial for maintaining chocolate at optimal temperatures.
Stirring Mechanism
- Stirrer Type: Incorporates top-driven, over-driven gate-type stirrers, enhancing the consistency of the chocolate mixture.
- Drive System: Stirrers are powered by a bridge-mounted motor and gearbox unit, ensuring reliable and steady operation.
Safety and Outlet Design
- Lid Design: Each tank has two hinged lids at the sides of the center bridge, enhancing access and maintenance.
- Safety Features: Magnetic safety switches are attached to the lids, prioritizing operator safety.
- Outlet Valve: Fitted with a stainless steel ball or butterfly valve outlet, facilitating easy and controlled discharge of chocolate.
Versatility and Industry Suitability
Loynds chocolate tanks are ideal for a wide range of applications within the confectionery industry. Their versatility, combined with customizable options, makes them suitable for businesses of varying scales, from boutique chocolatiers to large-scale chocolate producers.
