Confectionery Coating and Polishing Pans – CP01 – CP02 – CP03

Coating pans are primarily used for coating confectionery products with sugar, chocolate, glazes and waxes. The pans can be supplied with spray systems and blowers for hot or cold air.

Built in China & UK

Interested?

Call: +44 (0) 1253 882 961
E-Mail: sales@loynds.co.uk
for more information.

Get Quote

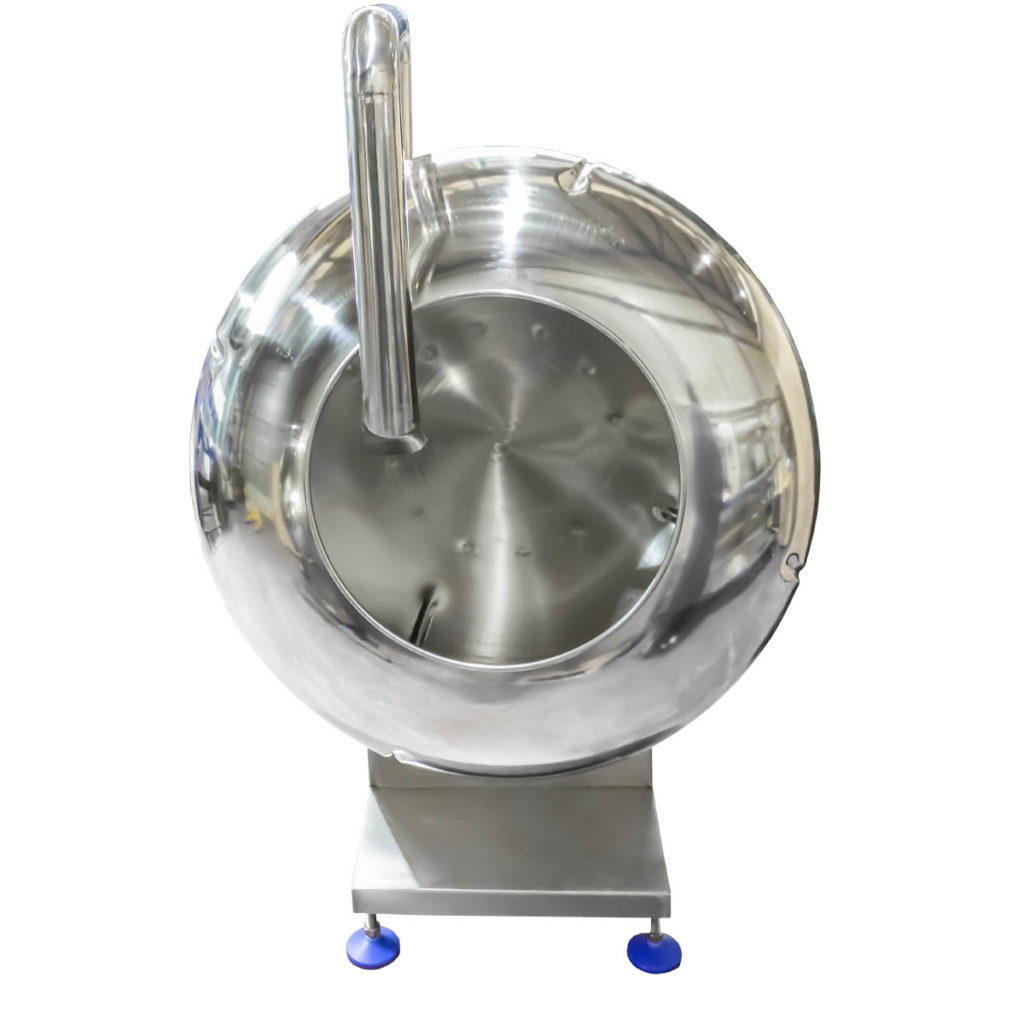

Enhance your confectionery finishing processes with our robust confectionery Coating Pans. The confectionery coating pan, manufactured from robust stainless steel are primarily used for the coating of a broad range of confectionery products such  as tablets, nuts, chocolates, and candies.

Key Features

  • Efficient Design: The CP01 coating pan includes a user-friendly and efficient design, ensuring simple operation and maintenance.
  • Adjustable Pan Angle: To achieve the optimal coating
  • Optional Air Blower Systems: Supplied with or without air blower systems for both hot and cold air.
  • Optional Automatic Spray Systems: These systems enable a precise and consistent application of coatings, essential for achieving the desired aesthetic and taste in your products.
  • Optional Internal Baffles: Enhance the tumbling action within the pan for a more even and consistent coating. This feature is crucial in preserving the quality and uniformity of your confectionery coatings.
  • Capacity: 45 to 200Kg capacity, depending on product being panned.
  • Material: Machine – 304 Stainless Steel
  • Uses: Coating of hard candies, chocolate, nuts, gum, tablets etc

Specifications CP01 (1000mm diameter pan)

  • Dimensions: (L) 1200mm x (W)1000mm x (H)1600mm
  • Pan diameter: 1000mm
  • Rotation Speed: 30-32rpm
  • Dip Angle: 30˚
  • Power: 3 phase.

Specifications CP02 (1250mm diameter pan)

  • Dimensions: (L) 1500mm x (W)1250mm x (H)1850mm
  • Pan diameter: 1250mm
  • Rotation Speed: 30-32rpm
  • Dip Angle: 30˚
  • Power: 3 phase.

Specifications CP03 (1500mm diameter pan)

  • Dimensions: (L) 1800mm x (W)1500mm x (H)2100mm
  • Pan diameter: 1500mm
  • Rotation Speed: 30-32rpm
  • Dip Angle: 30˚
  • Power: 3 phase.
