The Cross Feed Flowpack Machine is a medium-speed automatic or semi-automatic packaging solution designed for wrapping bars and piece-type products like chocolates, wafers, and biscuits. With speeds of up to 200 pieces per minute, it ensures easy operation, maintenance, and enhanced safety.
Built in China & UK
×
Built in China
Interested?
Call: +44 (0) 1253 882 961
E-Mail: sales@loynds.co.uk
for more information.
The Cross Feed Flowpack machine is an ideal packaging solution for wrapping chocolate bars, granola bars, wafers, biscuits and other bar type products. Designed for medium-speed production, this automatic or semi-automatic machine can wrap up to 200 pieces per minute, depending on the feeding configuration. The MW02 delivers heat-sealed packaging with secure zig-zag crimps and handles various pack lengths and product heights, offering flexibility for different confectionery items.
The machine features a cross feed infeed system, which allows for increased throughput and efficiency. Products can be fed into the conveyor side by side, creating a buffer that is automatically indexed into the chain infeed, optimising the packaging process.
Built for user-friendliness, it simplifies operation, cleaning, and maintenance, making it suitable for small to medium-scale production. The machine also comes with protective guards and interlocked magnetic switches to ensure safety during operation. The MW02 is compatible with a range of wrapping materials such as PP, CP, and PET, making it a versatile choice for the confectionery industry.
Specifications:
- Wrapping speed: 30–200 wraps per minute (ideal for medium-speed production)
- Pack length range: 40–90mm or 70–180mm (suitable for bars and biscuits)
- Max product height: 25mm (taller heights available upon request)
- Machine dimensions: 3200 x 2550 x 1500mm
- Weight: 600kg
- Power: Single phase 220v or 110v, 3.5kW
- Wrapping material: PP, CP, PET, etc.
- Contact parts: Stainless steel for hygienic operation
- Machine finish: Powder-coated steel
- Suitable products: Chocolates, granola bars, wafers, biscuits, and other bar shaped products
Features:
- Print registration unit for running printed films
- Film length adjustment via HMI for flexible operation
- Cross-feed conveyor for smooth and efficient product loading
- Wraps counter for easy production tracking
- Mounted on castors for mobility within production areas
Options:
- Date/code printer for product traceability
- Text, graphic, and barcode printer for customised packaging solutions
Videos
The Loynds Auto Feed Flow Pack machine is suitable for the wrapping of a large variety of products from after dinner chocolates to larger bars. The machine has a speed of 20 to 280 wraps per minute. Fitted...
ViewAutomatic Feed Flow Pack “S” Wrapping Machine
The Loynds Manual Feed Flow Pack "S" packing machine is suitable for the wrapping of a variety of products from after dinner chocolates to larger bars. The machine has a speed of 20 to 280 wraps per minute...
ViewManual Feed Flow Pack “S” Wrapping Machine – FP01

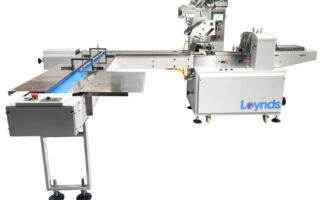

The Candy Mini Wrap packaging machine is a high-speed solution for wrapping small hard candies and similar products. Capable of wrapping 20 to 800 pieces per minute, it features print registration, a vibra...
