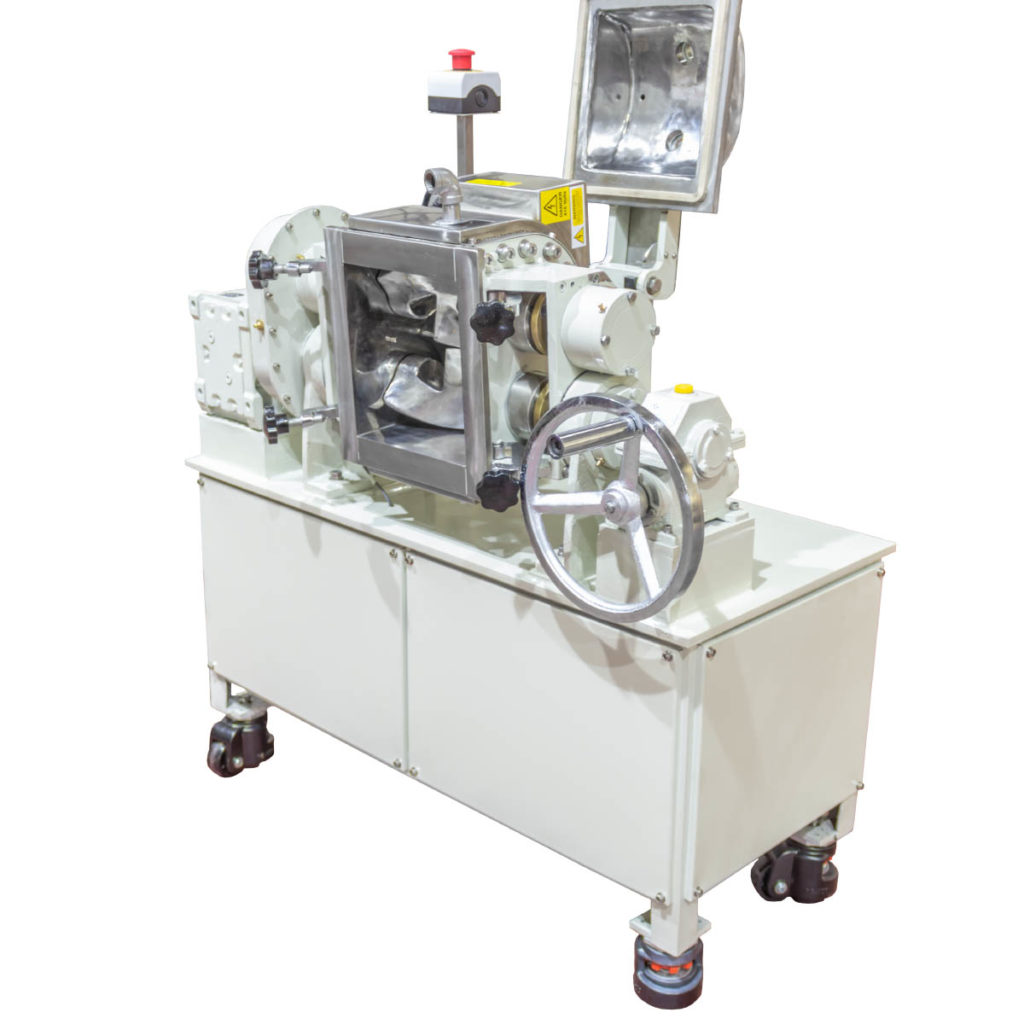

Mini Z-Blade Mixer -ZB01

The Loynds Mini Z-Blade Mixer is the ideal solution the mixing of highly viscous doughs, pastes and gums. Due to its small size, this model is particularly suited to low volume production or product development laboratories.

Built in China & UK

Interested?

Call: +44 (0) 1253 882 961
E-Mail: sales@loynds.co.uk
for more information.

Get Quote

The Loynds Mini Z-Blade Mixer, model ZB01, is a highly efficient solution for mixing viscous substances like doughs, pastes, and gums, particularly in small-scale production or product development kitchens. Its compact design does not compromise on functionality and efficiency, making it a versatile choice for various confectionery processes.

Capacity and Volume

  • Total Volume: 5 Litres, ensuring adequate space for batch processing.
  • Working Volume: 3.5 Litres for effective mixing without overflow.

Heating and Cooling System

  • Heating Method: Utilizes external heating mediums, with options for oil or steam heating.
  • Jacket Pressure: Safely operates at less than 0.8 MPa.
  • In/Out Port Size for Heating Medium: DN15

Motor and Gearbox Specifications

  • Power of Main Motor: 1.5 kW/4P/AC380V/50Hz, ensuring robust performance
  • Gearbox: KW47-25-1.5

Blade and Trough Details

  • Blade Type: Sigma blade, designed for efficient mixing.
  • Material of Blade: CASTING SUS304, ensuring durability and food safety.
  • Material of Trough: 6mm SUS304 internal surface with a 6mm SUS304 jacket.

Operational Specifications

  • Revolution of Main Shaft: Front/Back at 58/40 rpm, enabling thorough mixing.
  • Distance Between Blade and Trough: ≤3 mm, minimizing product residue and ensuring uniform mixing.

Discharge and Opening Mechanism

  • Discharging Method: Trough tilts manually by hand wheel, with a tilting angle of 95° for easy emptying.
  • Open/Close Method: Manually operated with an opening angle of 70° and a simple press-lid closure.

Additional Features

  • Nozzle on Lid: Includes a sight glass & a release ball valve. customizable to customer requirements.
  • Temperature Sensor: PT100 temperature sensor for precise temperature monitoring.
  • Electric Control System: Features control for motor rotation, start-stop, electric current and material temperature display, and emergency stop button.
  • Electrical Components: Includes button, breaker, relay, contactor, emergency stop button, thermal relay, time relay, and magnetic guard switches.
  • Feet on Machine: Yes, for stability and ease of placement.
  • Dimensions: (L)1200mm x (W)650mm x (H)1100mm
