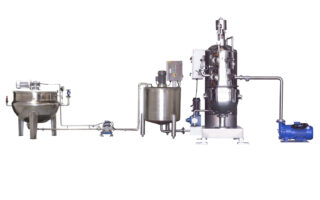

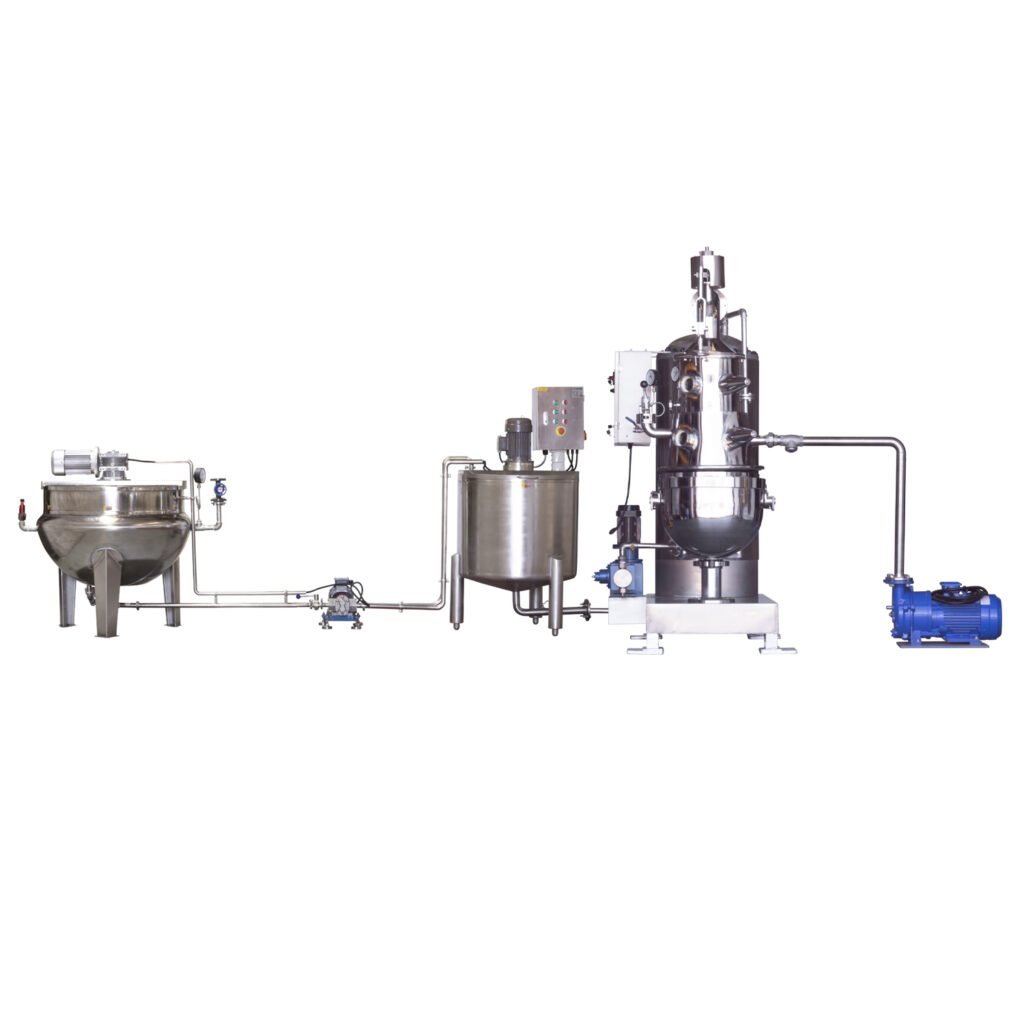

The Loynds Sugar/Glucose Dissolving System is a complementary system for candy manufacturing when using a vacuum cooker. Our system streamlines the sugar dissolving process, enhancing efficiency and productivity.
Built in China & UK
×
Built in China
Interested?
Call: +44 (0) 1253 882 961
E-Mail: sales@loynds.co.uk
for more information.
Optimise your candy manufacturing process with the Loynds Sugar/Glucose Dissolving System. Designed to work seamlessly with vacuum cookers, our system accelerates sugar dissolution, enhancing both efficiency and output for large-scale candy production.
Why Choose Our Sugar Dissolving System?
- High Efficiency: Speed up the sugar dissolving process and improve productivity.
- Compatibility: Designed to integrate seamlessly with vacuum cookers.
- Quality Construction: Made from durable 304 stainless steel for long-lasting use.

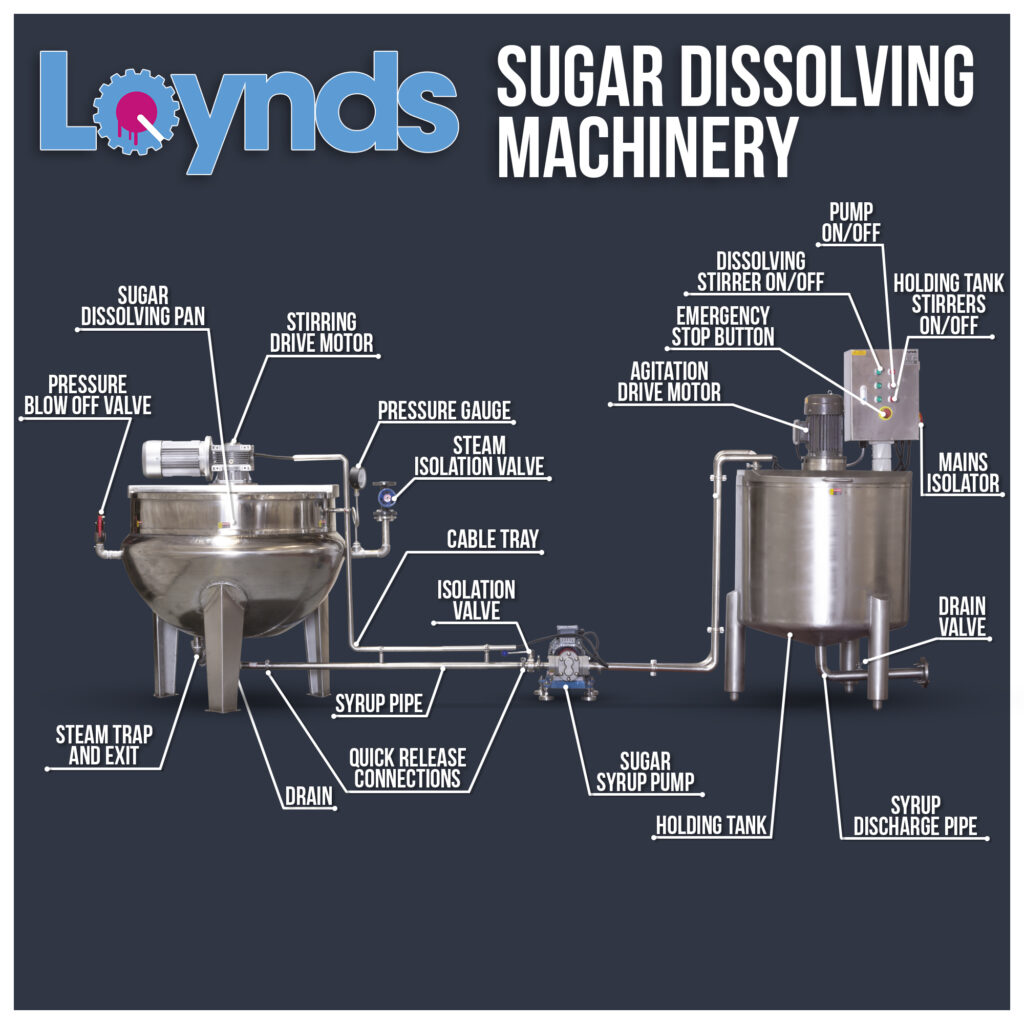

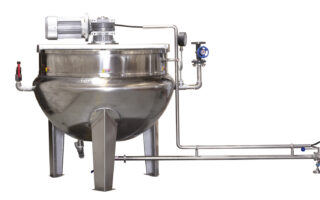

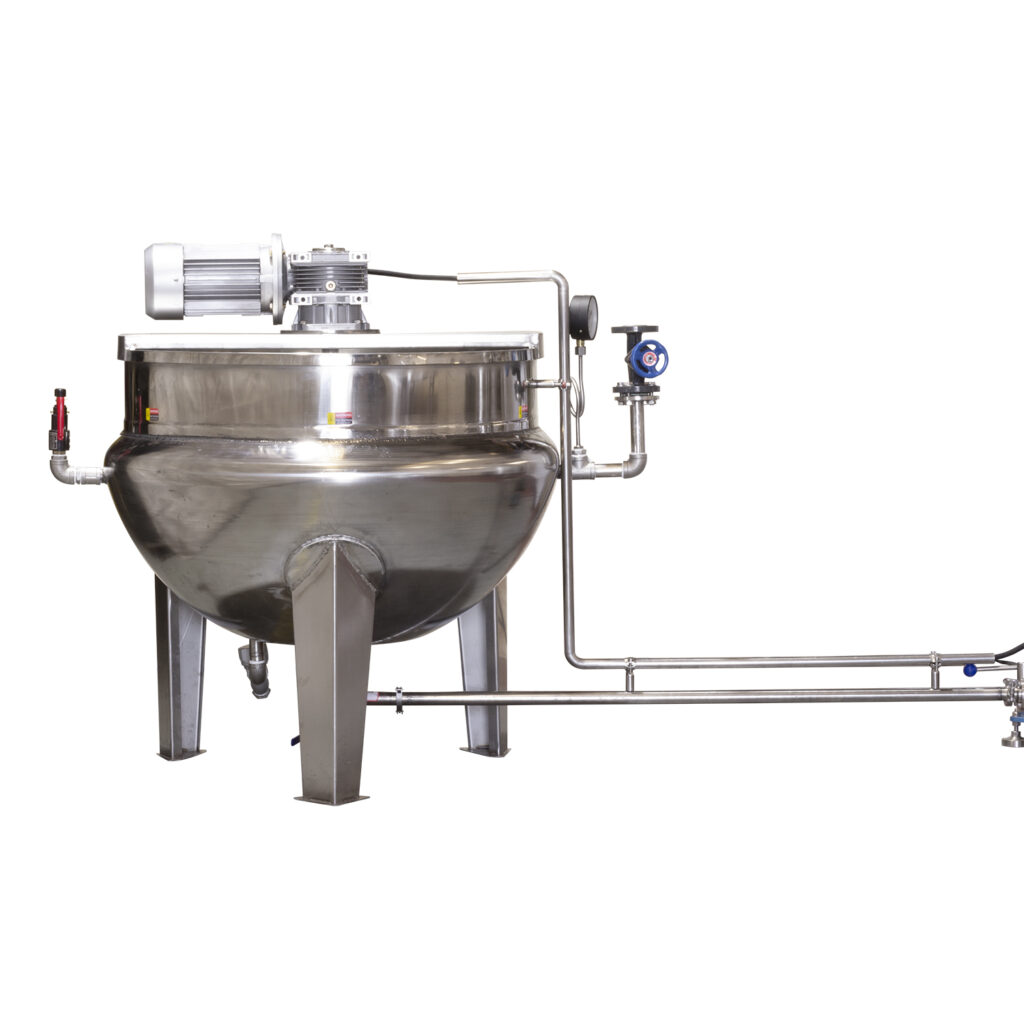

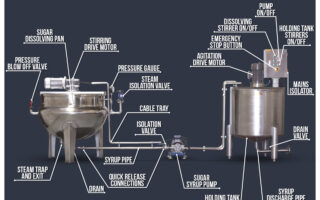

Sugar/Glucose Dissolving Unit: Our system features a 300kg capacity jacketed steam pan equipped with a bridge-mounted stirrer. The vessel, constructed from 304 stainless steel, includes a bottom outlet and operates at a working pressure of 80 PSI. This robust vessel is welded on three tubular legs and is fitted with both a pressure relief valve and a pressure gauge, as well as an isolation valve.

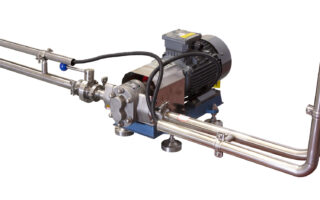

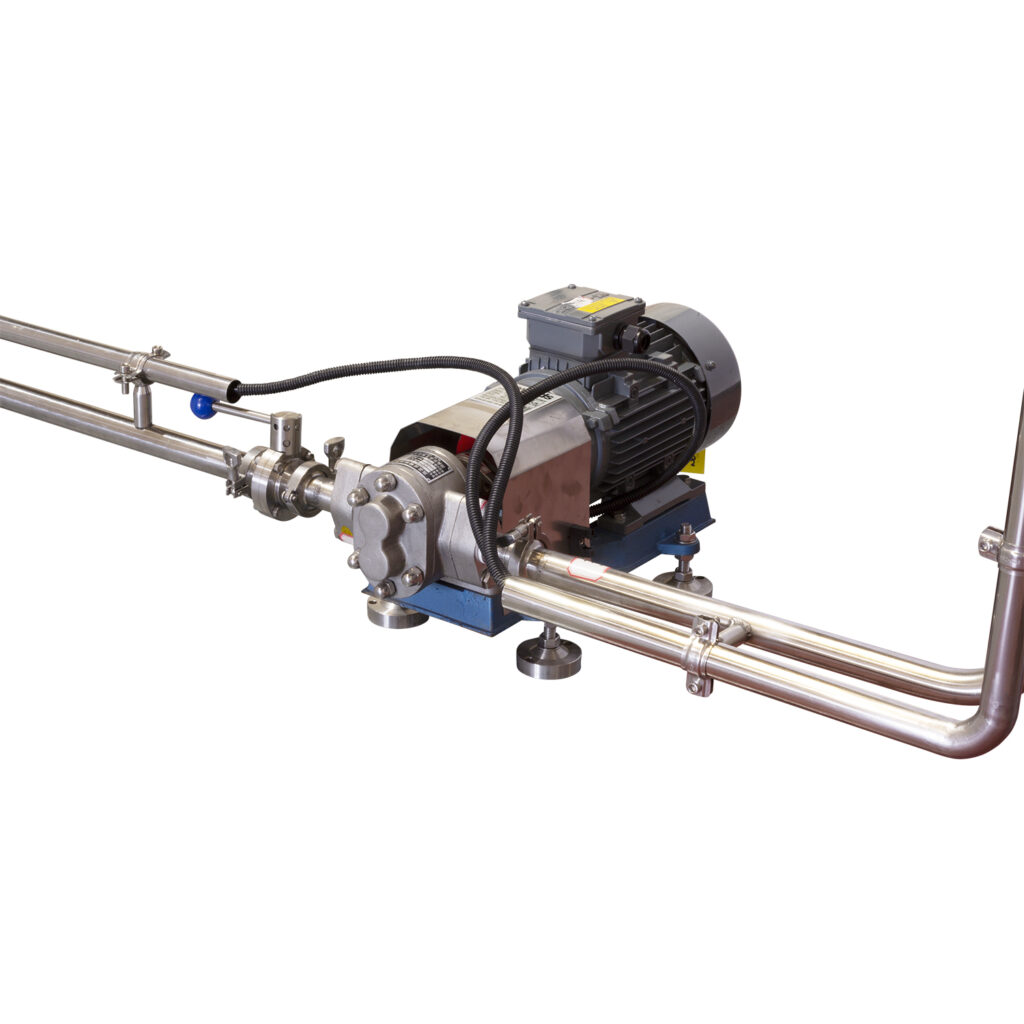

Syrup Pump & Pipework: Our sugar dissolving system includes single-wall 32mm OD piping that connects the 300kg dissolving pan to the holding tank. The pipeline incorporates an isolation valve and a gear pump for optimal control. Made from durable 304 stainless steel, the pipework is connected using fast hygienic clamps with seals, eliminating the need for tools.

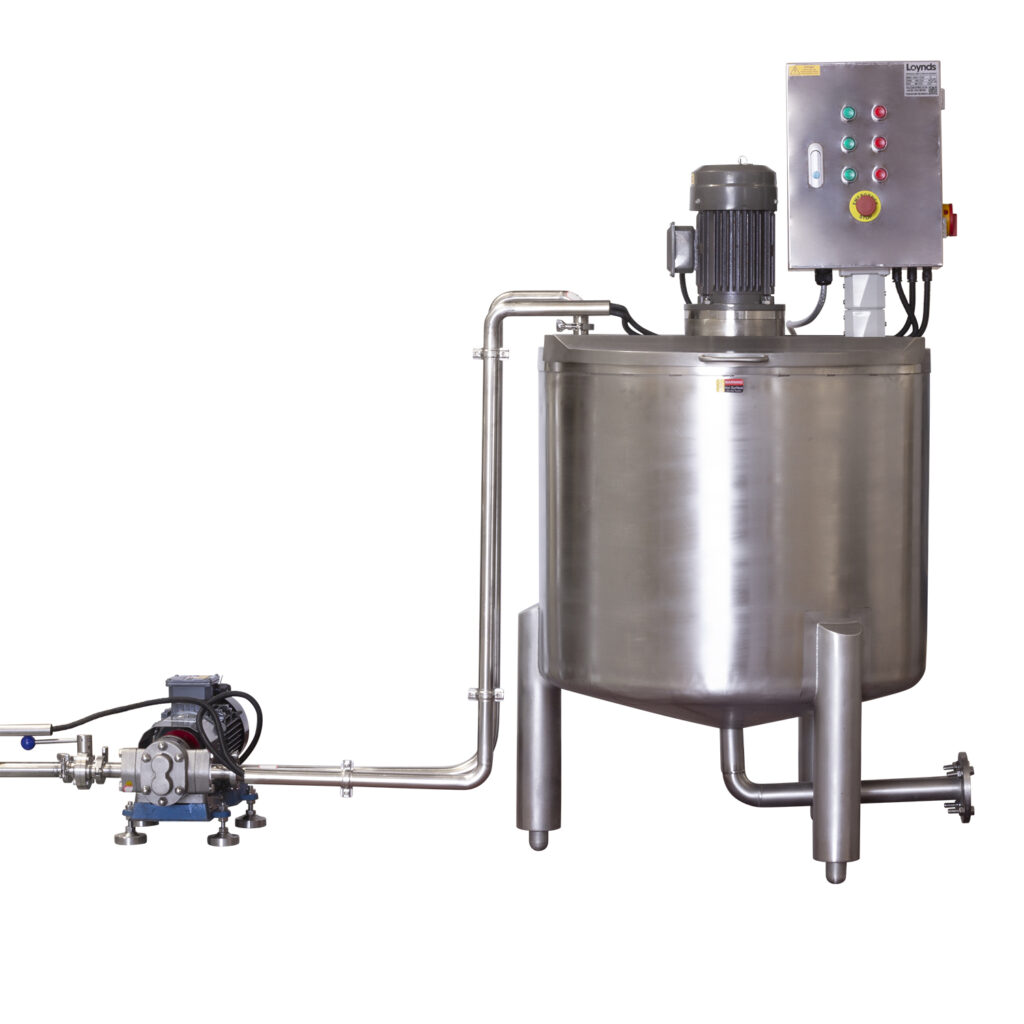

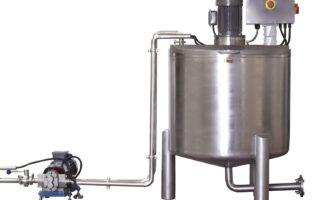

300kg Holding Tank: The system features a single-skin holding tank, also manufactured from 304 stainless steel. The tank is equipped with a Silverson-type mixer and a bottom outlet, allowing it to seamlessly connect to the vacuum cooker.
Control Panel: An easy-to-use control panel is mounted on the holding tank, providing electrical controls for the dissolving pan, pump, and holding tank stirrer.
Our Sugar/Glucose Dissolving System is the perfect solution for efficient, high-quality candy manufacturing.
Specifications:
- Capacity: Up to 300Kg
- Power: Maximum Load – 4.5Kw
- Weight: 500Kg
- Material: 304 Stainless Steel with contact parts food grade materials
- Products: Hard & Soft Candy
- Overall Footprint: (L)3400mm x (W)1000mm x (H)1500mm
Individual Machine Dimensions - Dissolving Pan: (L)1000mm x (W)1000mm x (H)1500mm
- Holding Tank: (L)900mm x (W)900mm x (H)1500mm
- Pipework: 1500mm (Can be changed to suit your needs)
- Products: Hard & Soft Candy
